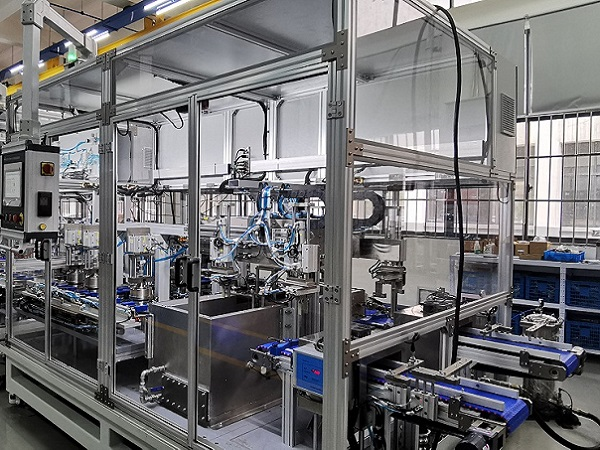

Precision Angular Contact Bearing Assembly Line

Assembly line for angular contact ball bearings

The outstanding feature of CAYA's precision angular contact ball bearing assembly line is that the assembled workpieces can be matched, the entire line is designed with flexibility, easy changeover, high efficiency, high precision, and high stability, which can improve the efficiency of bearing assembly.

The outstanding feature of the precision angular contact ball bearing assembly line developed by CAYA is that the assembled workpieces can be paired. The concept is to calculate the grinding amount through pre fitting and measurement; The flexible design of the entire line makes it easy to change types and reduces the time required for changing types, solving the problem of inconvenient small batch changing of multiple varieties of precision angular contact bearings.

Function of assembly line for angular contact ball bearings

Angular contact ball bearings are usually installed in pairs, and the assembly process varies depending on the assembly method. There are certain requirements for bearing clearance fit, interference fit, etc. During the assembly process, the assembly of angular contact bearings can be completed more conveniently and quickly by replacing manual labor with equipment, thus improving overall production efficiency.

The assembly line of angular contact ball bearings includes a pre-processing part, a measuring part, a pre fitting part, a fitting and assembly part, and a subsequent detection and processing part connected by an automatic conveying part; The pre fitting part includes pre fitting feeding components, pre fitting sleeve components, protrusion detection components, and disassembly and unloading components.

The assembly line of angular contact ball bearings realizes the automated assembly production of angular contact ball bearings. The input inner ring, outer ring, cage, and steel ball undergo preliminary cleaning and testing, and are formally assembled after passing the pre assembly. After passing the strict inspection procedure again, the assembly process is completed.

Characteristics of assembly line for angular contact ball bearings

1. Flexibility; 2. Digitalization and intelligence; 3. High precision and high stability.
