Ball Bearing Assembly Line

High end large-sized ball bearing assembly line

Technical features: Innovative design with high intelligence, high reliability, and high flexibility; ● High flexibility design, quick changeover; Real time statistics of equipment status, quality data, and production scheduling for the entire production line; ● More user-friendly ergonomic design.

Measurement range: Deep groove ball bearings

Inner circle: Inner diameter: Medium 65- Medium 100mm; Outer diameter (Dk): 85-125mm; Width: 28-45mm;

Outer circle: outer diameter: 140 mm -200mm; width: 28-45mm; grease injection, marking, and oil coating

Equipment details: 1. Dual channel cleaning machine for outer and inner space images;

2. Dual channel testing machine for outer diameter, outer groove diameter, inner diameter, and inner groove diameter of the outer ring;

3. Outer/inner grouping machine;

4. Pairing and ball loading machines;

5. Assembly of retaining frame and riveting machine;

6. Automatic grease injection and dust cover equipment;

7. Finished bearing cleaning machine;

8. Laser marking and defect detection machine;

9. Finished bearing oiling machine;

10. Fully automatic vibration detection machine;

11. Clearance detection machine.

Technical features: ● Innovative design with high intelligence, high reliability, and high flexibility;

● High flexibility design, quick changeover;

Innovative design with high intelligence, high reliability, and high flexibility;

● More user-friendly ergonomic design.

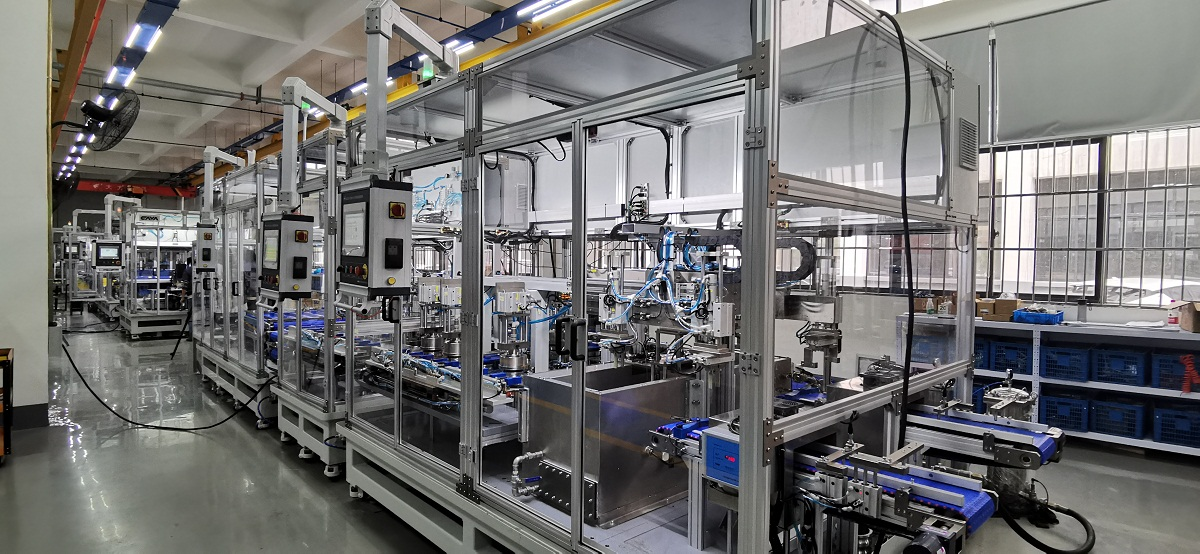

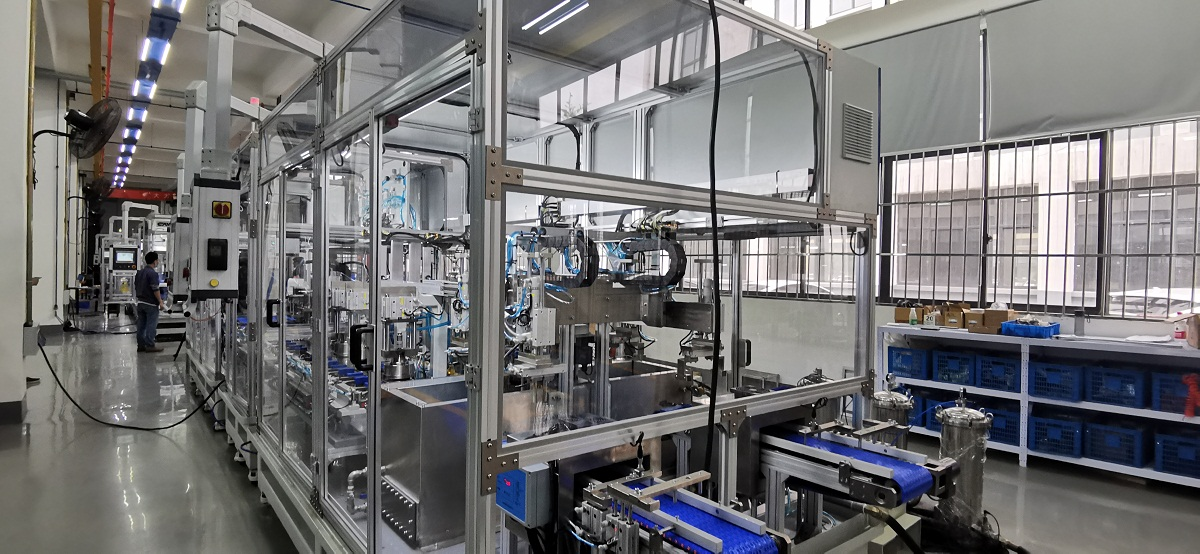

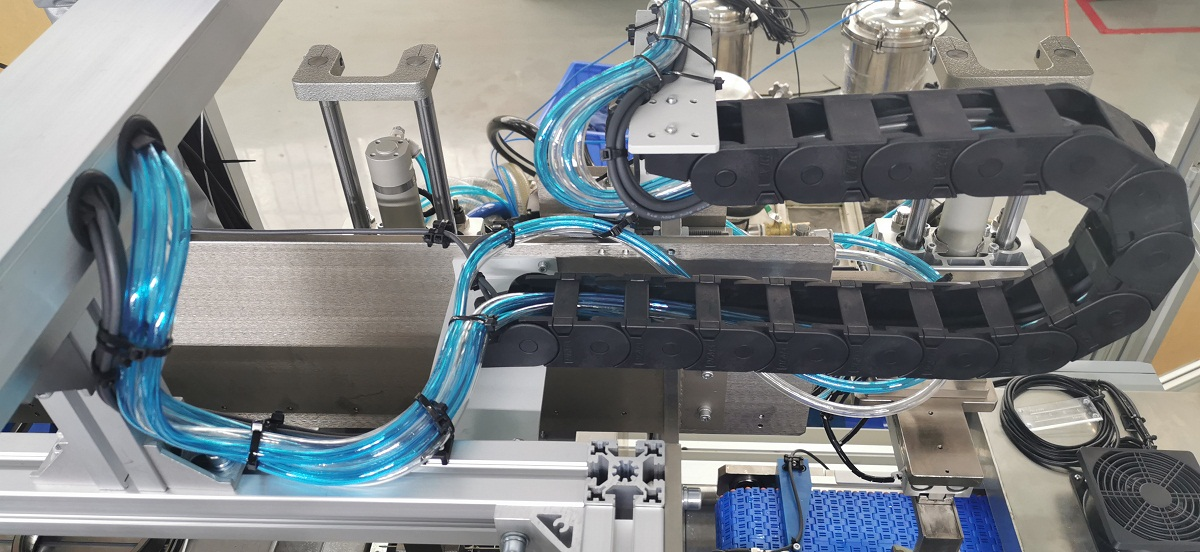

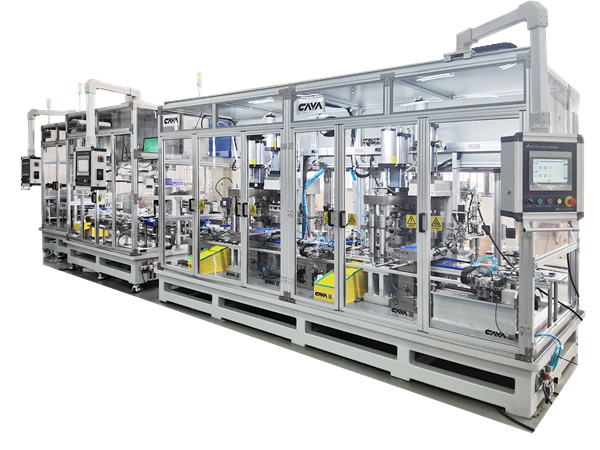

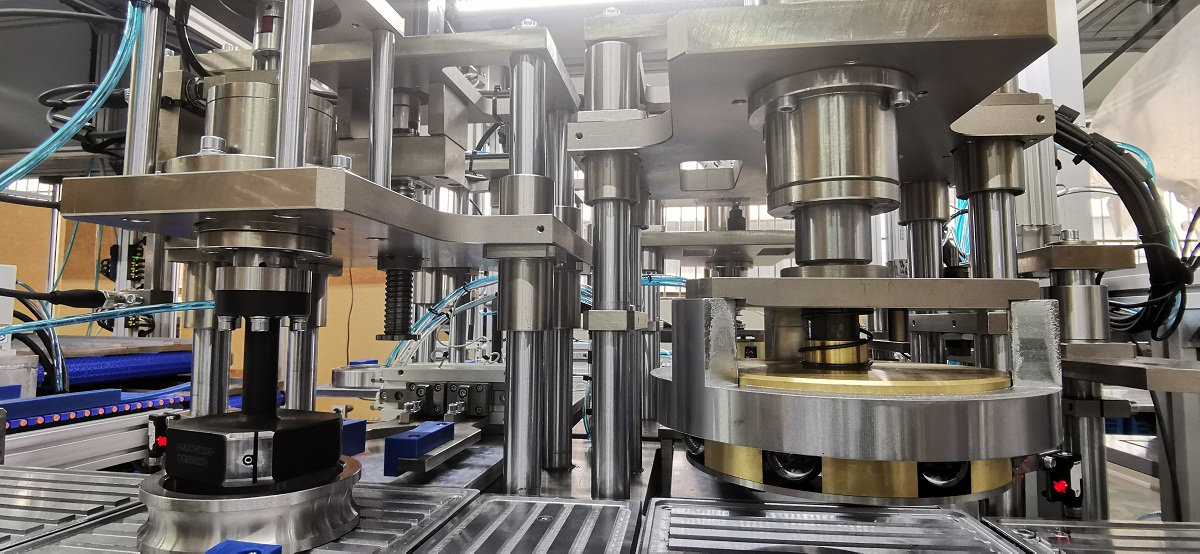

Product image display:
