Bearing Sorting Machine

Work piece

Inner and outer diameters of inner and outer rings of ball bearings, hub bearings and tapered bearings

Inner and outer groove diameter of inner and outer rings of clutch release bearing

Tapered roller bearing outer ring outer diameter and raceway sorting machine

Needle roller bearing bushing sorting machine

Needle roller bearing ring


Name

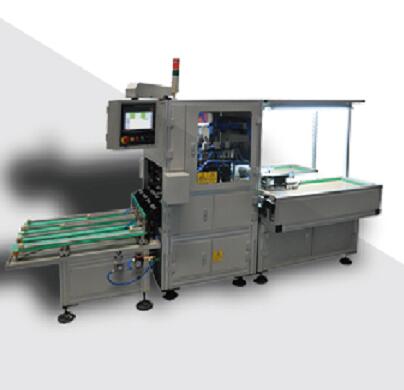

Small and medium bearing inner diameter/outer diameter sorting machine

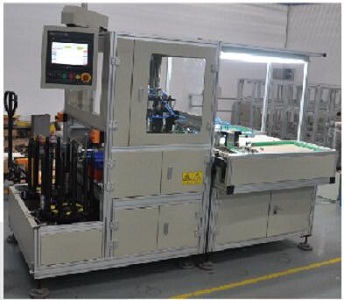

Automotive clutch release bearing inner and outer ring groove diameter sorting machine

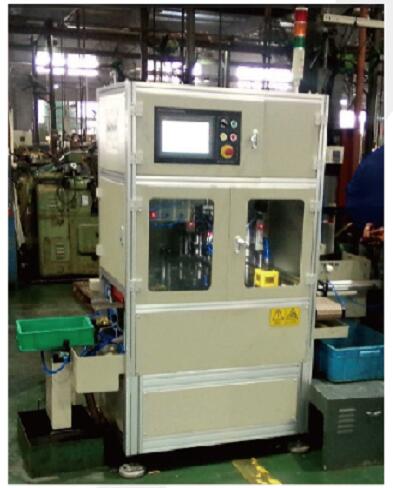

Medium-sized tapered roller bearing outer ring outer diameter outer raceway sorting machine

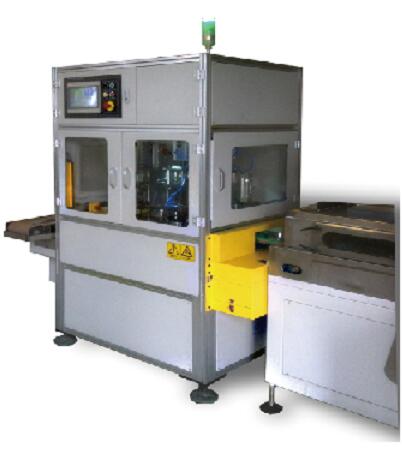

Needle roller bearing ring multi-parameter sorting machine

Needle roller bearing bushing multi-parameter sorting machine

Model

AMdD 100

AMDedi90

AMDDe200-GGB

AMdD80

AMdDH60

Equipmentusage

Substitute labor for pre-installation inspection of bearings or final inspection of parts

Measuring range

Outer outline of the measured object φ30mm-φ 100mm

Outer outline of the measured object φ20mm- φ70mm

Outer outline of the measured object φ90mm- φ200mm

Outer outline of the measured object φ40mm- φ80mm

Outer outline of the measured object φ20mm- φ60mm

Measurement parameters

The average size deviation and taper of the inner diameter of the inner ring;
Average dimensional deviation of outer ring outer diameter, taper

Single size deviation of inner ring groove bottom;
Single dimension deviation of outer ring groove bottom

Average size deviation, ovality, taper of outer ring outer diameter;
Outer raceway single - - dimensional deviation, angle

Single outer diameter - section size deviation;
Dimensional deviation, taper, ovality of inner diameter of two sections

The average size deviation and taper of the two sections of the outer diameter;
The average size deviation of the two truncated inner diameters, taper;
Dimensional deviation of single point of total bushing height and raceway height

Measurement principle

comparative measurement

measurement method

air measurement

air measurement + electrical measurement

Electrical measurement

air measurement

Gas measurement + electrical measurement

measurement accuracy

0.5μm

1μm

1.5μm

2μm

Inner and outer diameter 1 μm, height 5 μm

work cycle

5S/2piece

7S/2piece

10S/piece(measure ovality)

12S/2piece

10S/piece

self-calibration

Zero self-calibration according to the set time or cycle

SPC function

According to the SPC process control theory, it analyzes the measurement data and provides XbarR control chart and Cp, Cpk, Pp, Ppk, Cmk and other-series process control parameters, and counts the total number, the number of qualified products, the number of repaired products, and the number of rejected products.

Advantage

①Efficient, automatic and reliable sorting;
②Completely independent dual-channel, 30 minutes to change.

①Efficient, automatic and reliable sorting;
②Completely independent dual-channel, 30 minutes to change.

①Efficient, automatic and reliable sorting;
② 30 minutes to change the model.

①Efficient, automatic and reliable sorting;
②Completely independent dual-channel, 30 minutes to change.

①Efficient, automatic and reliable sorting;
② 30 minutes to change the model.
