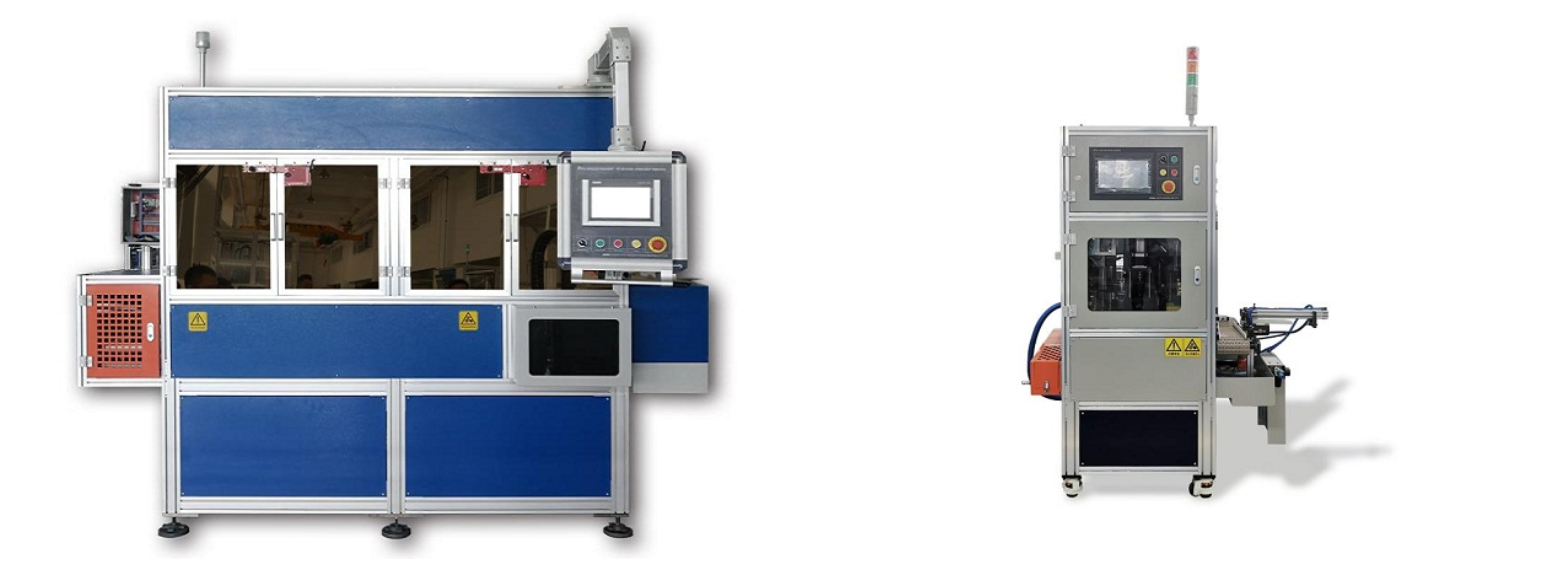

Bearing Online Inspection Machine
Automatic Inspection Machine
This series of products can be connected to grinding machines for online automatic detection, online sorting to improve processing quality, SPC analysis to achieve pre control production, closed-loop feedback to replace manual labor, and achieve one person multiple machines or unmanned supervision.
Quantity
Bearing Online Inspection Machine
This series of products can be connected to grinding machines for online automatic detection, online sorting to improve processing quality, SPC analysis to achieve pre control production, closed-loop feedback to replace manual labor, and achieve one person multiple machines or unmanned supervision.
Relate Parameters
Parameters Measured: Bearing inner diameter , outer diameter ,inner raceway ,outer raceway .
Parameters
1. Average size deviation, taper, ovality (optional), and busbar profile (optional) of the inner ring inner diameter;
2. Deviation of average outer diameter, taper, ovality (optional), and busbar profile (optional) of the outer ring
3. Single dimensional deviation and angle of inner raceway;
4. Single dimensional deviation and angle of outer raceway;
Measurement Method：Air measurement /Electrical measurement
Measurement Accuracy:±1μm
Measurement Cycle: Meet the machining cycle of the grinding machine.
Temperature Compensation: rapid temperature measurement, achieving temperature compensation
Code Reading Function: Implement QR code reading for parts
SPC Function: automatic data collection, calculation and analysis, providing XbaR control charts and process control parameters such as CP/CPK/PP/PPK/CMK
Feedback Function: This machine can form a closed-loop control unit with the grinder, achieving unmanned grinding processing.
Temperature Compensation: rapid temperature measurement, achieving temperature compensation
Code Reading Function: Implement QR code reading for parts
SPC Function: automatic data collection, calculation and analysis, providing XbaR control charts and process control parameters such as CP/CPK/PP/PPK/CMK
Feedback Function: This machine can form a closed-loop control unit with the grinder, achieving unmanned grinding processing.
Characters
1. Quality Guarantee: The bearing online inspection machine has an online automatic sorting function, with qualified products flowing into the next process and NG products being removed.
2. Save Labor: The online bearing inspecion equipment can form a closed-loop system with the machine tool, realizing feedback guidance for automatic part adjustment of the machine tool, which is an inevitable choice to achieve"one person, multiple machines"or even"unmanned factory";
3. Pre control : This series of inspection machines has the ability to analyze SPC process control and obtain long-term and short-term capability indices of corresponding machine tools through full inspection data. When the equipment is in"non steady state"operation, it can timely remind operators and managers to adjust the equipment, achieving the quality management objective of"pre control".
3. Pre control : This series of inspection machines has the ability to analyze SPC process control and obtain long-term and short-term capability indices of corresponding machine tools through full inspection data. When the equipment is in"non steady state"operation, it can timely remind operators and managers to adjust the equipment, achieving the quality management objective of"pre control".
